Content | Fully Assembled
Same as Mid XRX but has Reverse
Perfect for Riders up to 12 years old
6.5 Horsepower Industrial Engine
Torque converter transmission
Electric Start
Backuup Pull Start
3 Point Safety Harness
Speed Limiter
Full Rollcage
Dual LED Headlights and Horn
Adjustable Driver Seat 31.5? to 36?
Colors: Orange, Green, Black, Blue, Red, Yellow and Pink |
- Model: TrailMaster 200 XRS
- Engine: single-cylinder, 4-stroke, air-cooled GY6 clone with internal reverse
- Displacement: 169cc
- Transmission: Automatic CVT with reverse
- Gearing: F-N-R
- Max HP: 8.2hp/7500rpm
- Max torque: 7 lb ft/6000rpm
- Bore x Stroke: 2.26x2.28 inches
- Carburetor brand: Deli (Vacuum film)
- Engine oil: SAE 15W/40
- Ignition: CDI
- Battery: 12V 10Ah
- Starting system: Electric with kill switch
- Max speed: 43.5 mph
- Climbing ability: 12 degrees
- Fuel capacity: 2.25 gal
- Final drive: Chain / Dual wheel drive
- Suspension (front/rear): Independent Dual A-arm / Rear swing arm
- Brakes (front/rear): Hydraulic Disc / Hydraulic Disc
- Tires (front/rear): 20x7-8 / 22x10-10
- Wheels (front/rear): 7 inch Aluminum / 10 inch Aluminum
- Features: Dual 5-point Seat Harnesses, Lights, Tail light
- Max load: 500 lbs.
- Wheelbase: 59 inches
- Height to seat: 13.8 inches
- Pedal to seat distance: adjustable from 39 to 43 inches
- Min ground clearance: 6.7 inches
- Net Weight: 485 lbs.
- Gross Weight: 573 lbs.
- Dimensions (LxWxH): 85x53.1x57.5 inches
- Shipping Dimensions (LxWxH): 88x48x25 inches
- Configurations And Specifications Subject To Change Without Notice.
- Not CARB Approved
| Fully Assembled

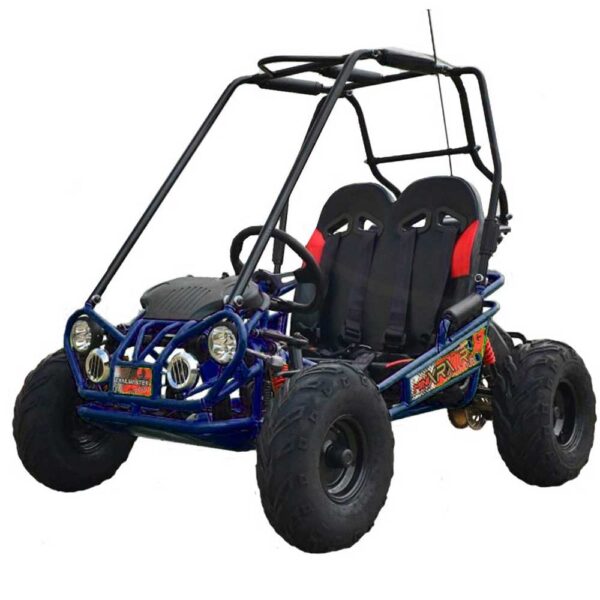

Deluxe Mini Go-Kart with Reverse
5.5 Horsepower Industrial Engine
Electric Start
Backuup Pull Start
Remote Kill Switch / Key FOB
5 Point Nascar Style Safety Harness
Speed Limiter ( As Low as 5MPH )
Full Rollcage
Dual LED Headlights and Horn
Adjustable Seats and Pedals
This small kart would be the next step after that little power wheel.
Colors: Red, Blue, Black, Yellow, Green and Pink |
